AVAILABLE SHORTLY

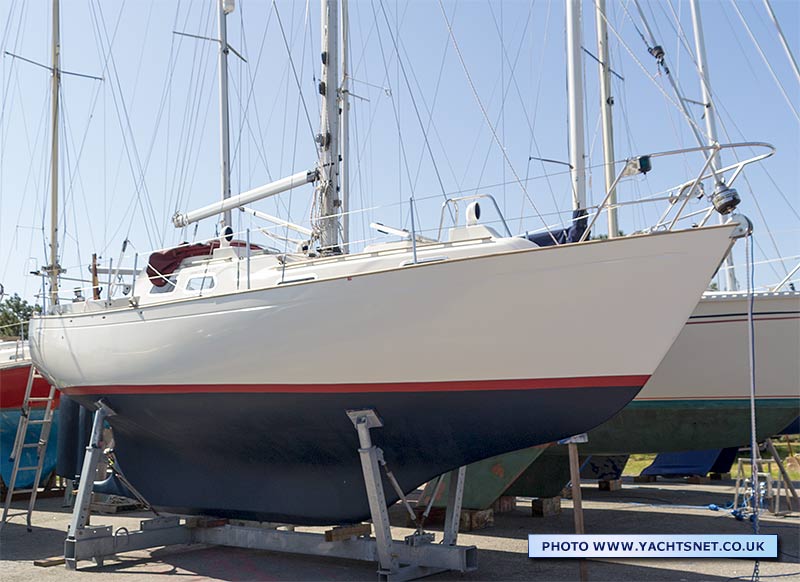

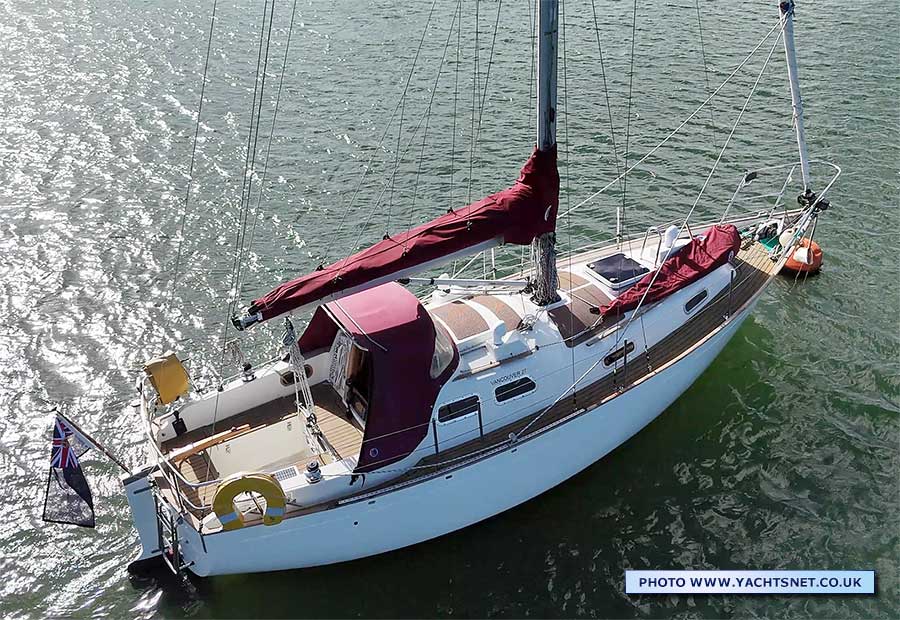

F191026	Vancouver 27			Lying	ashore Hampshire
Builder	Pheon Yachts, Newhaven, on mouldings by Northshore.			Year	1979
Builder	Pheon Yachts, Newhaven, on mouldings by Northshore.			Price	£tba

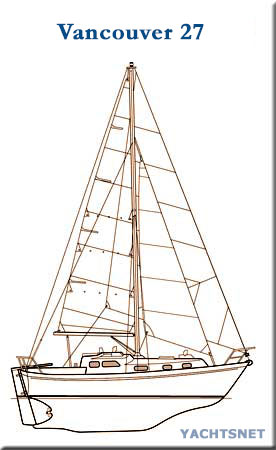

LOA	27' 0"	Sail area	356 sq ft main, jib and staysail	Brief details
LWL	22' 11"	Rig	Cutter	The Vancouver 27 is an uncompromisingly cruising-orientated design, with no concessions to racing or modern fashion. The heavy-displacement long keel hull is very solidly built, and the hull form copes well with added weight for stores for long passages. We sold this Vancouver 27 to the present owner five years ago. Although built in 1979 she had an very extensive refit in around 2011/12, which included replacing spars, engine, sails etc. She has a very well finished 3-berth interior. Full details and photos available very shortly....
Beam	8' 8"	Cabins	1
Draught	4' 6"	Berths	3 plus 2 pipe cots
Displacement	8,966 lbs	Engine	Yanmar 3YM diesel
Ballast	3,465 lbs	BHP	21

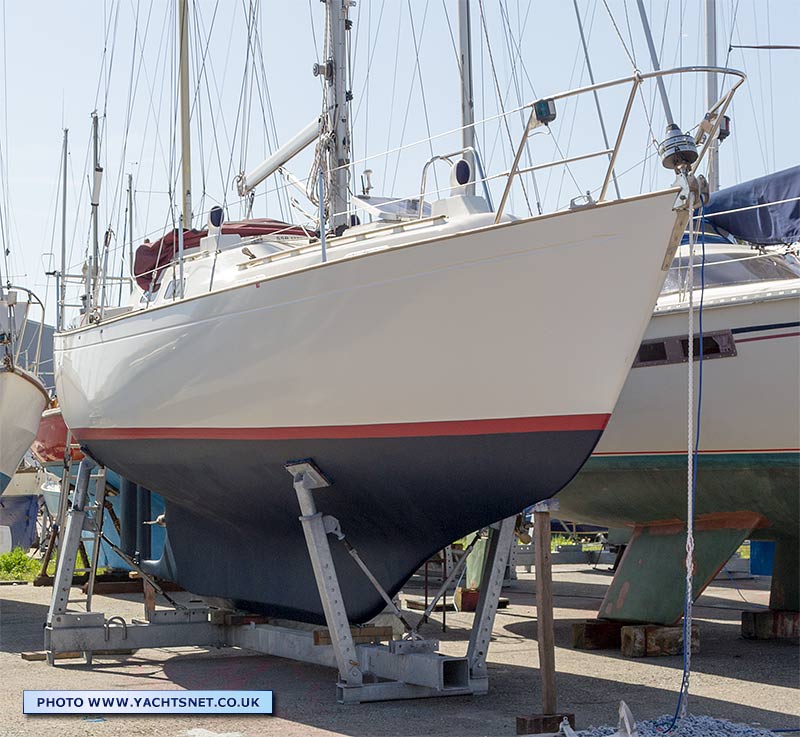

Keel type	Long keel with encapsulated ballast

The Vancouver 27 was originally designed in 1972 by the Canadian Robert Harris, as a one-off cruiser which was then sailed from British Columbia to New Zealand and back. Later a second boat was built, and moulds were taken from this for series production, both in Canada and England. The English Vancouvers were first built by Pheon Yachts, and later taken over by Northshore. Over the years the design was modified slightly to create the Vancouver 274 and then the 28, which remained in very limited production well into the 2000s, though by then they were extremely expensive for their size.

The differences between the 27, 274 and 28 are very minor. the 28 having a fractionally lengthened stern, and a few inches raising of the topsides. To date over 250 Vancouver 27s 274s and 28s have been built, and many have made long-distance passages, helped by the fact that the transom-hung rudder makes it easy to fit trim tab windvane steering.

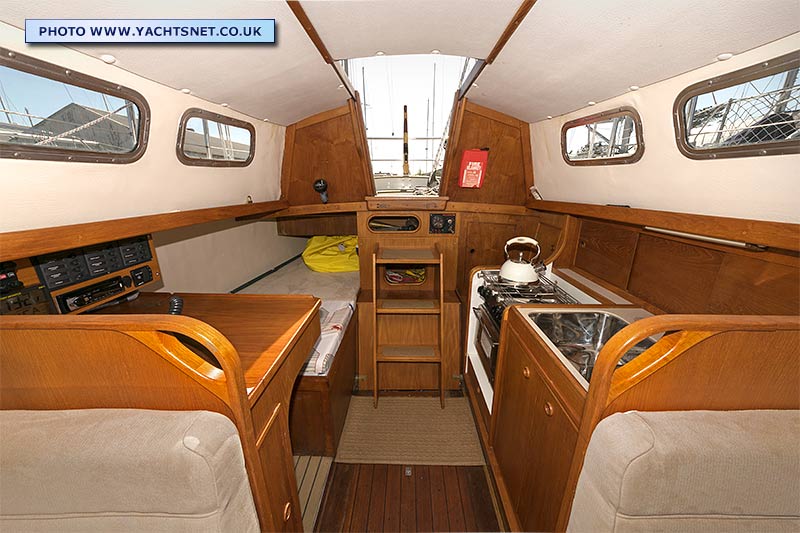

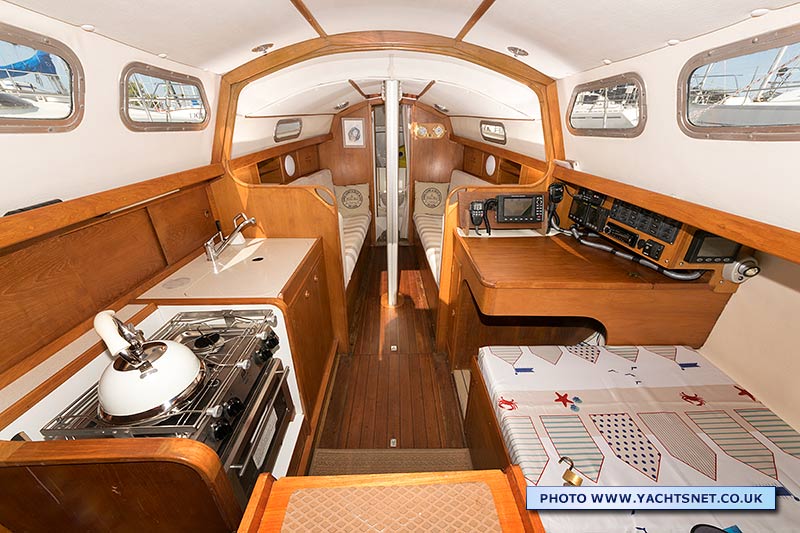

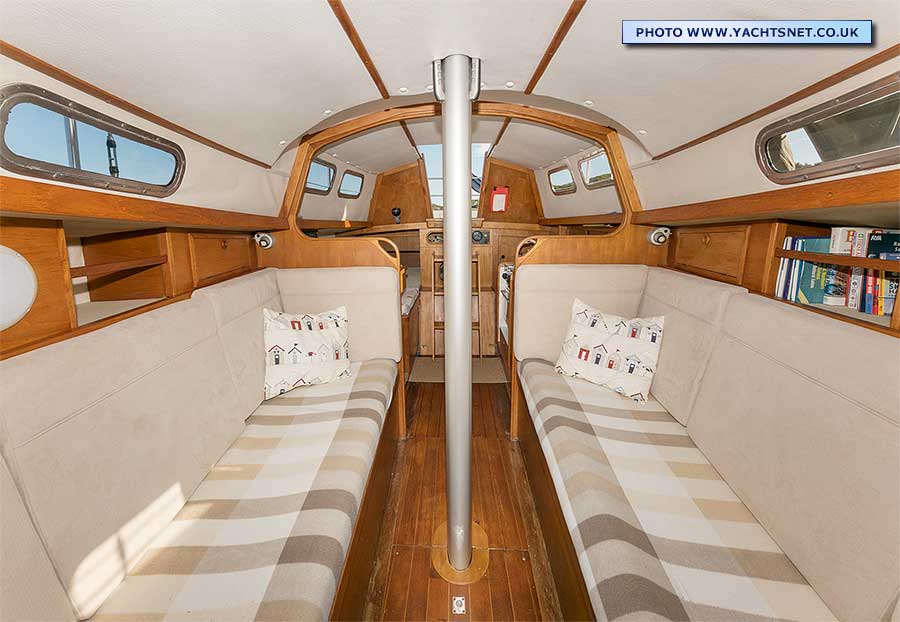

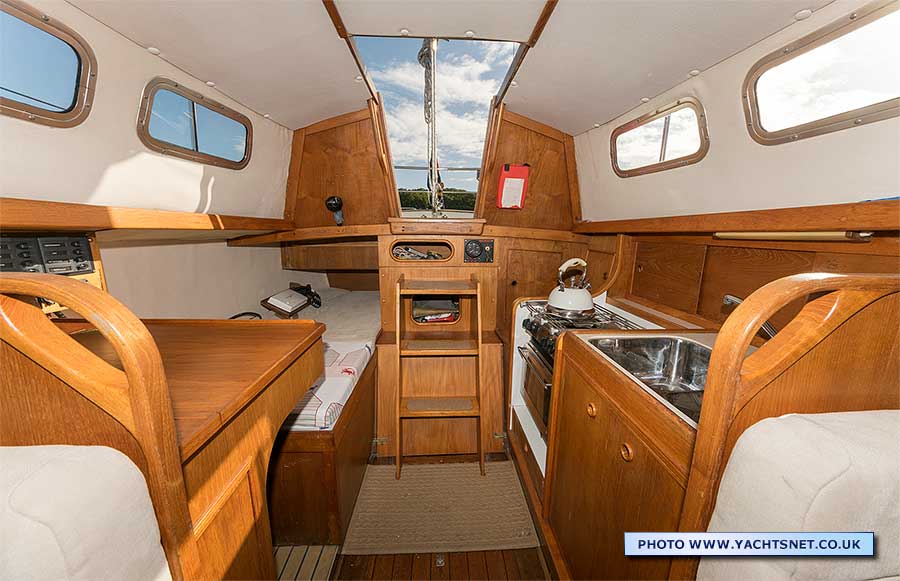

Two different interior layouts have been produced, with three or four berths. In the three berth version there are no forecabin berths, but a quarter berth aft in the saloon. This yacht is the three-berth version, generally regarded as a better boat for a couple or a singlehander as it has a better galley and chart table arrangement.

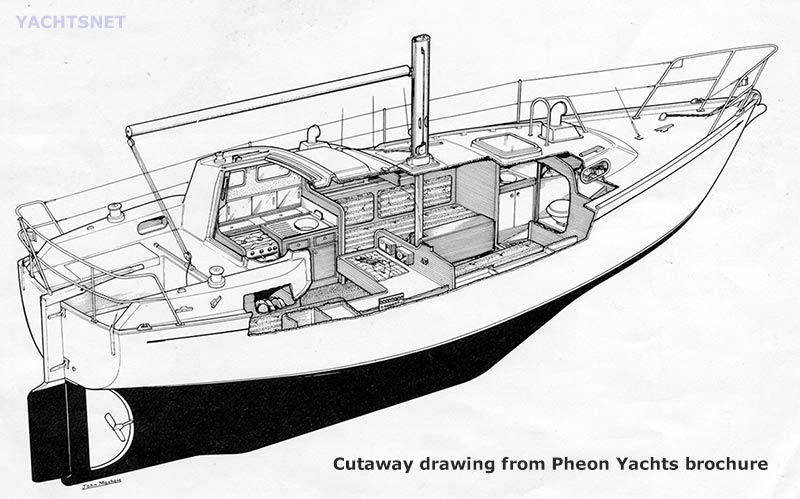

The hull and deck are hand laid up GRP. The ballast is encapsulated entirely within the hull moulding. The deck moulding has a balsa core which is replaced with plywood in high stress areas where fittings are attached. The interior fit-out is to a very high standard of joinery, with lots of solid teak.

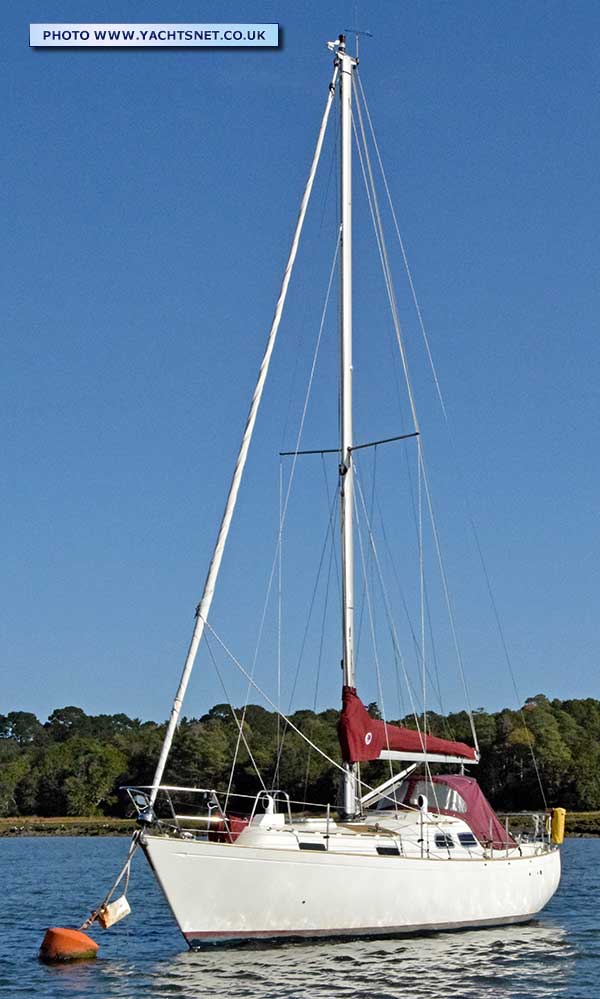

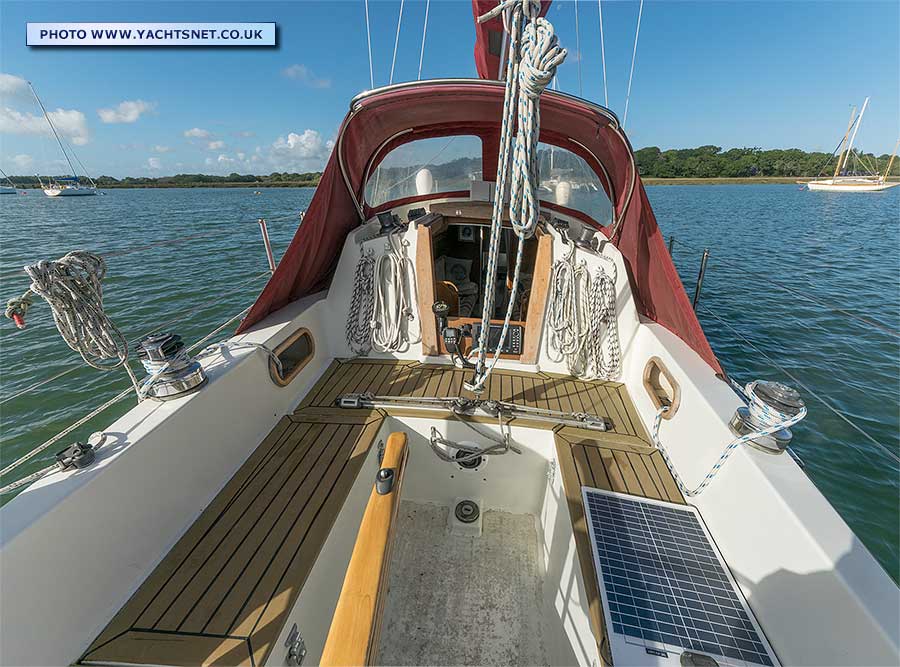

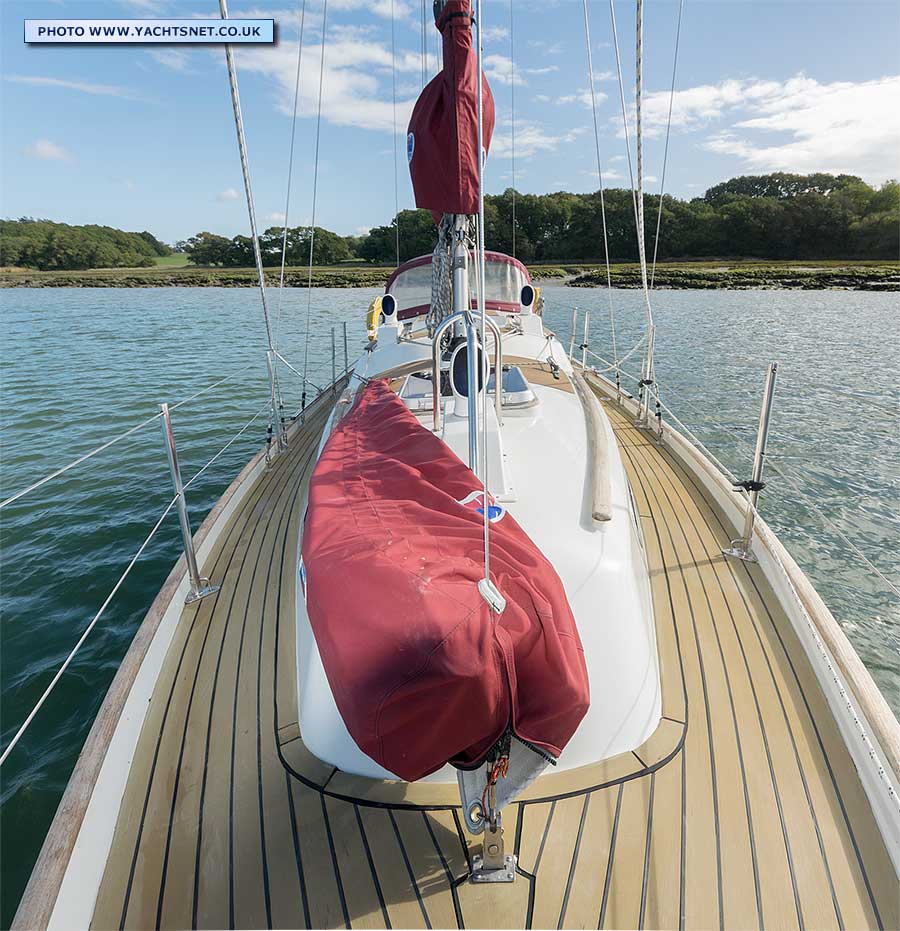

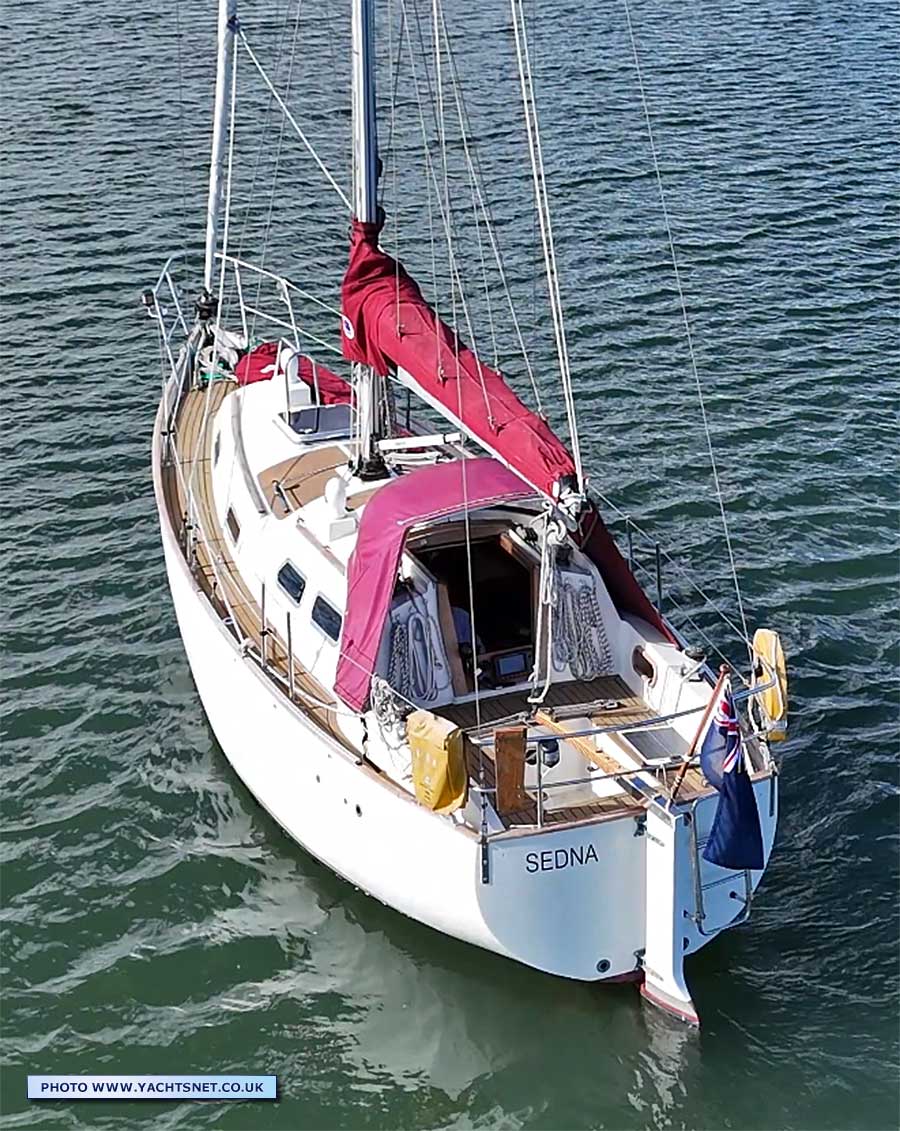

Yachtsnet photographs April 2021

Photographs Yachtsnet April 2021 new photos coming shortly

Inventory:

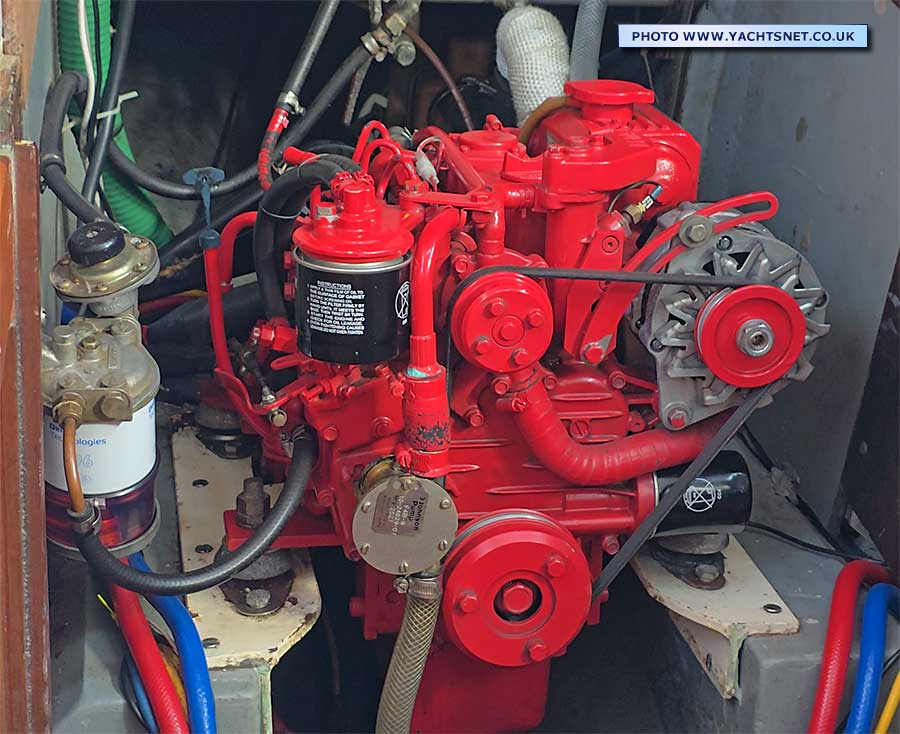

Engine details		Beta B-20HE 3-cylinder diesel, freshwater cooled, shaft drive. Engine new 2021
Fuel tank capacity		125 litres in S/S tank
Propeller		Three bladed Featherstream with ropecutter
Batteries		2 x 110AH batteries new 2025
Battery charging/electrics		70 amp engine alternator and shorepower Sterling charger. NASA BM-1 battery meter.

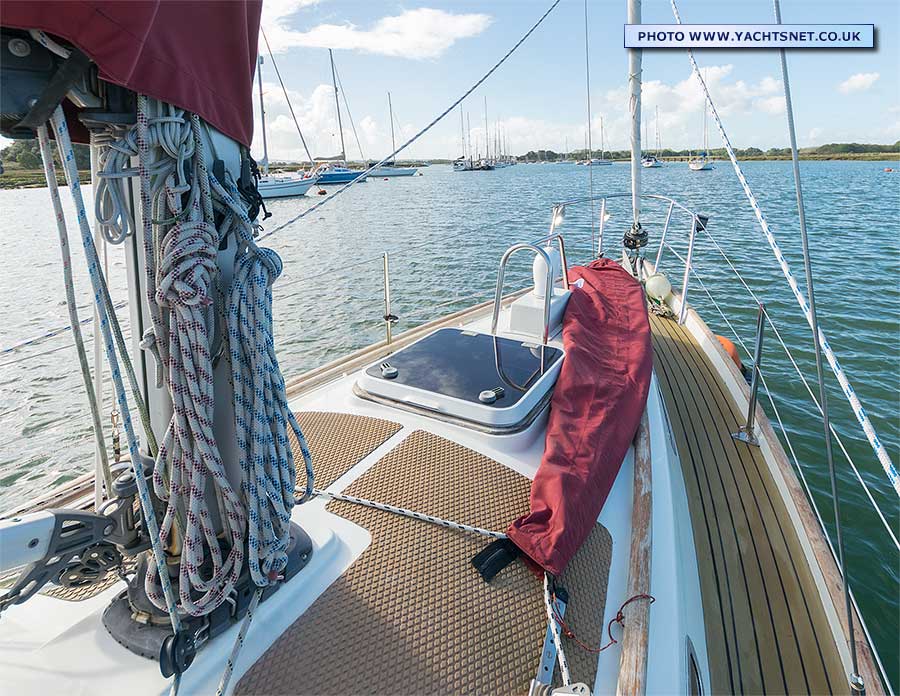

Sails and deck equipment
Rig details		Cutter rig, new Selden alloy mast, boom and rod kicker in summer 2012, along with new S/S standing rigging.
Mainsail		Sanders Sails, new 2011/12, fully battened with cars. Slab reefing with three reef points.
Genoa		Sanders Sails, new 2011/12 roller furling genoa.
Genoa furling		Furlex, new 2011/12
Staysail		Sanders Sails, new 2011/12
Spinnaker		Cruising chute, age unknown
Trysail		Yes
Storm jib		Yes
Primary winches		2 x Lewmar ST30 self-tailing
Secondary winches		2 x Gibb on coachroof

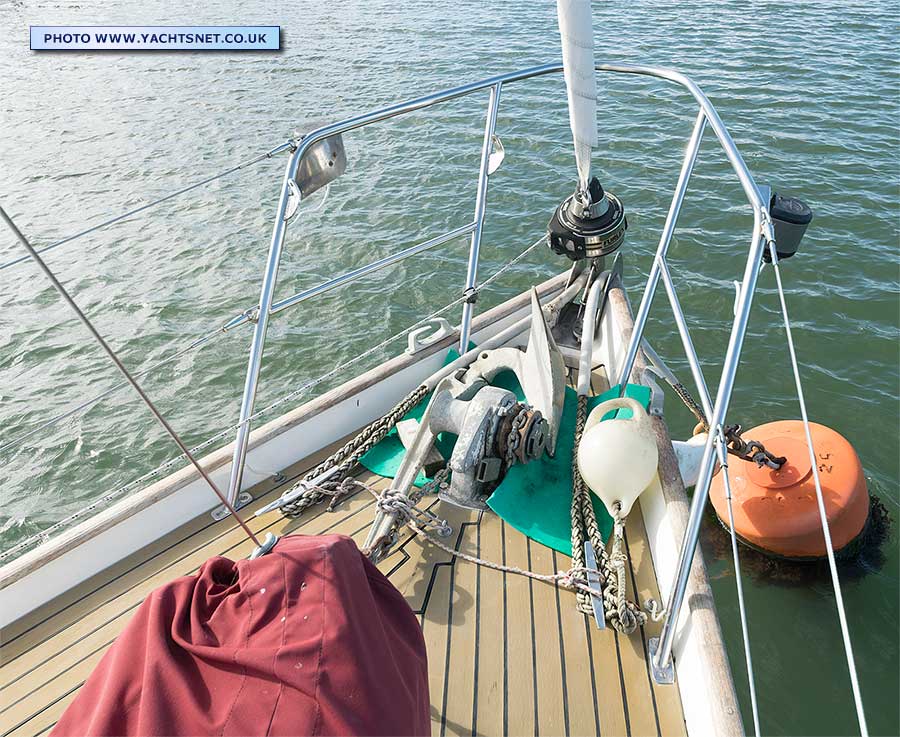

Bower anchor		25 lb CQR with 40 metres chain
Kedge anchors		Danforth type
Anchor windlass		Simpson-Lawrence manual windlass

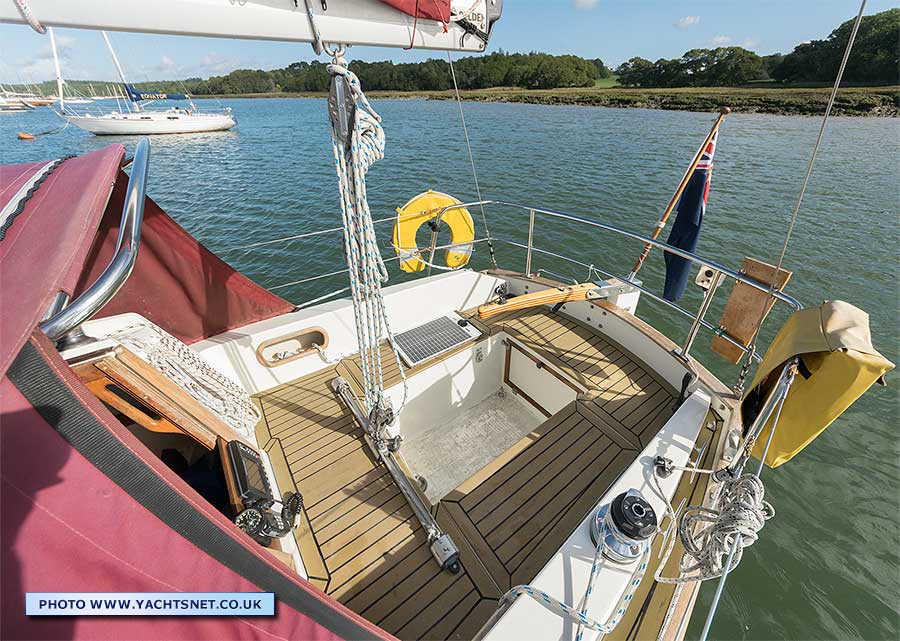

Steering		Tiller
Autopilot		Raymarine ST2000+ - new 2019
Compasses		Handheld Silva Universal compass, also Autohelm digital compass
Warps & fenders		10 warps and 7 fenders
Navigation Equipment and instruments

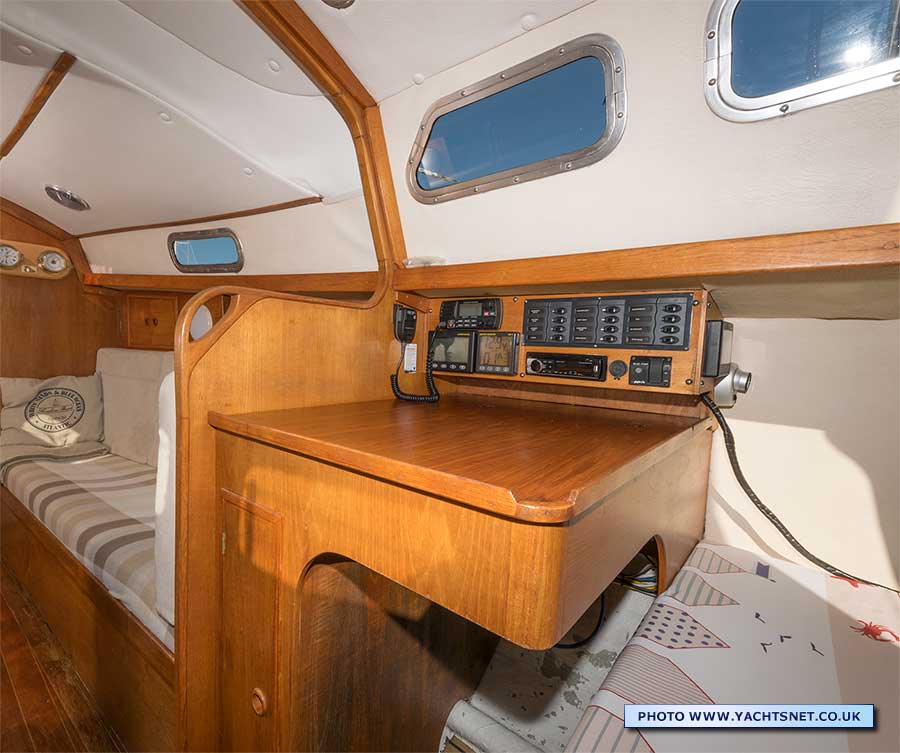

GPS/Chartplotter		Standard Horizin CP-300i with integral GPS, new 2013. C-Map chart cartridge new 2019. Plotter can be used at chart table or in companionway.
AIS		Digital Yacht AIT Class B AIS transponder
Depth sounder		NASA Clipper - new 2013
Windspeed/direction		NASA Clipper - new 2013
VHF radio		Standard Horizon GX-1500E with DSCV and remote RAM mic - new 2013
Radio receiver		Radio/CD with Bluetooth
Clock and barometer		Analogue clock and barometer set, also Meteoman electronic barometer
Navtex		NASA Clipper Navtex - new 2013
Safety/emergency equipment
Flares		Coastal pack - in date
Lifebuoy		Horseshoe with floating light and danbuoy
MOB equipment		Throwing line and MOB lifting strop
Bilge pumps		Manual and electric pumps
Miscellaneous		One 2Kg fire extinguisher
Interior

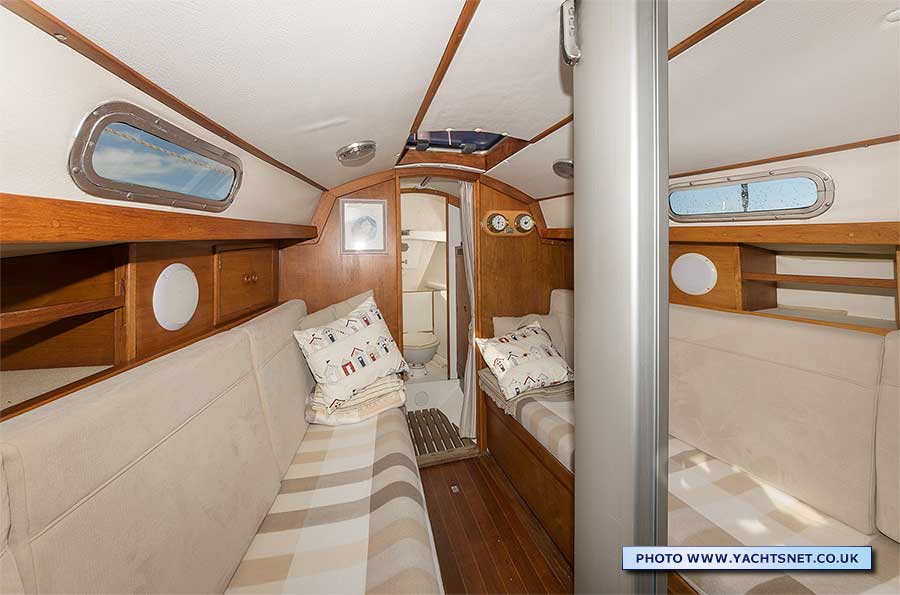

Cabin layout		Heads and saloon
Berths		3
Water tank capacity		100 litres in flexible water tank. Pressurised hot and cold water - water heating by engine calorifier.

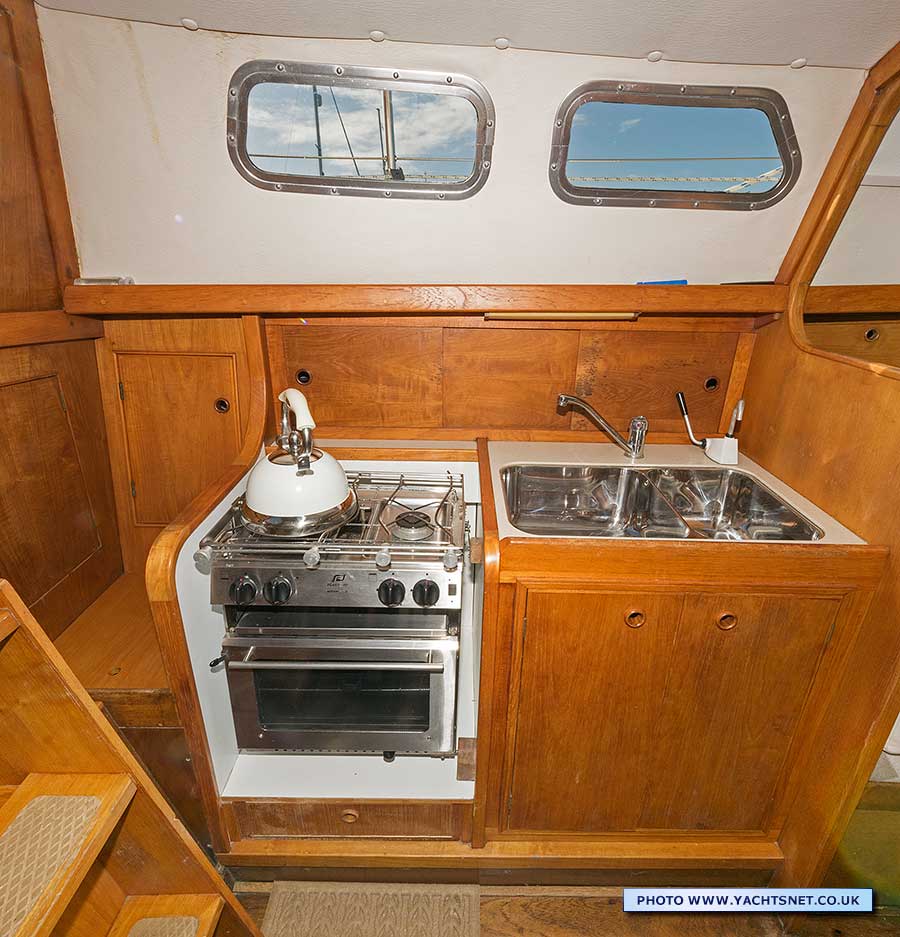

Cooker		Plastimo Neptune two-burner, grill and oven, barely used.

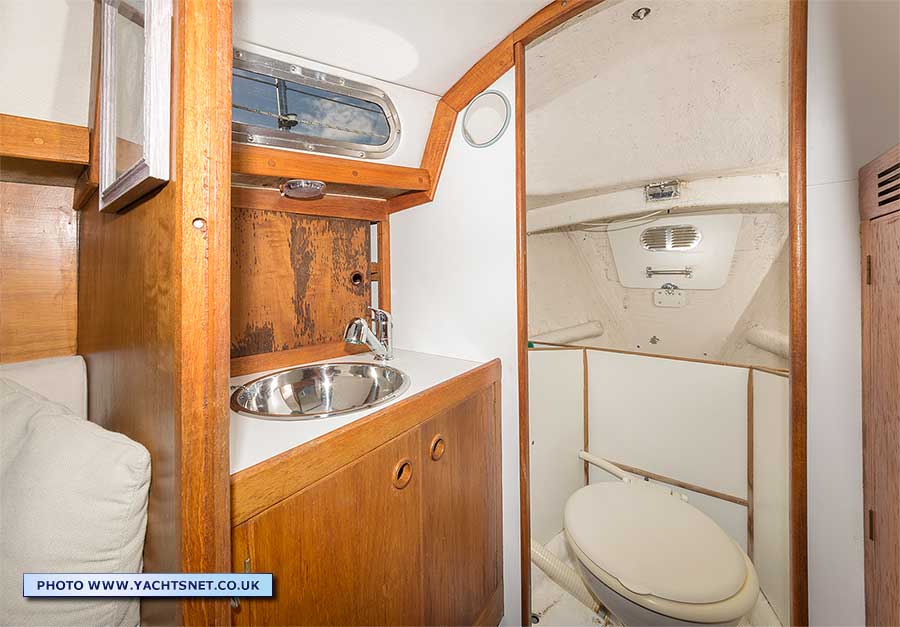

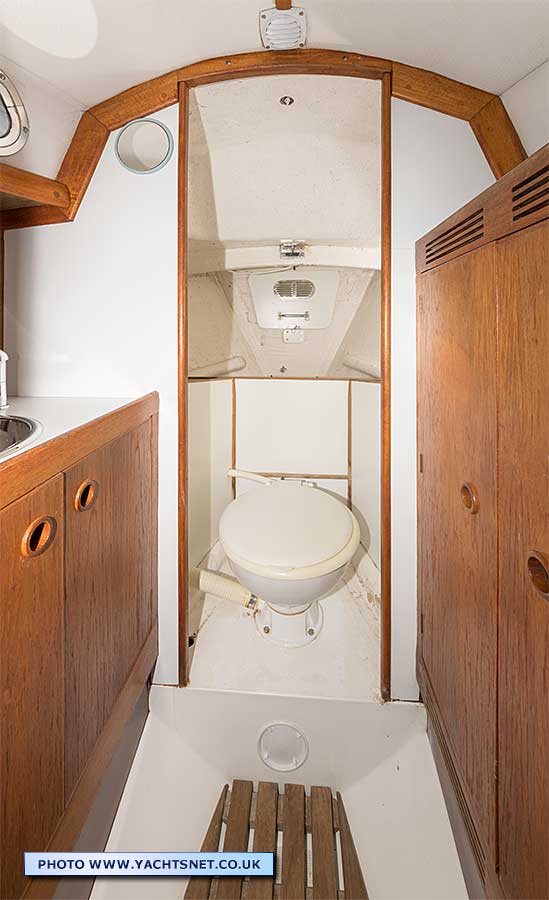

Heads		Lavac
These particulars are believed to be correct but cannot be guaranteed and are subject to confirmation by the purchaser subject to still being available. For further information or to arrange a viewing, please contact Yachtsnet on 01326-212234 or

The particulars detailed herein are intended to give a fair description of the vessel but their accuracy cannot be guaranteed. These particulars are not a part of any contract or offer, and are supplied on the understanding that all negotiations shall be conducted via Yachtsnet Ltd., who are acting as brokers for the vendor. The vendor is not selling in the course of business unless otherwise stated. The prospective purchaser is strongly recommended to check the particulars, and where appropriate, at his own expense, to employ qualified agents to carry out surveys, structural and/or mechanical & electrical checks or tests
